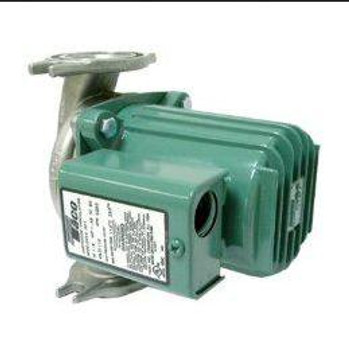

Taco 0014-SF1 Pump

Taco 0014-SF1 circulator (stainless steel) is designed for use in medium head and medium flow applications, such as large residential and light commercial systems. This model is well suited for high mass boilers, primary/secondary loops, commercial water heaters, and light commercial heating and cooling systems. Taco 0014-SF1 Stainless Steel circulator is also commonly used with open loop systems.
A built-in replaceable cartridge of the 0014 series circulators contains all of the moving parts, allowing to replace the cartridhe instead of replacing the entire circulator. Low power consumtion and compact desing make the Taco 0014-SF1 model ideal for high-efficiency jobs.

Applications:
Hydronic Heating;
Radiant Heating;
Zone Additions;
Domestic Water Systems;
Chilled Water Cooling;

And many others.

Performance Data:
Flow Range: 0-32 GPM;
Head Range: 0-22 Ft;
Min. Fluid Temperature: 40F;
Max. Fluid Temperature: 220F;
Max. Working Pressure: 125 psi;
Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged;

Electrical Specs:
Voltage: 115V;
60 Hz;
Phase 1;
1.55 Amps;

Features:
Exclusive ACB baffle protects motor windings against condensate buildup;
Compact design;
High Velocity Performance;
Low power consumption;
Self-lubricating;
Replaceable cartridge;
Maintenance-free;

Warranty:
3 year manufacturer's warranty.
