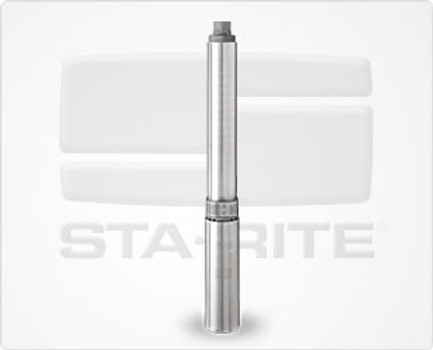

Sta-Rite S7P4HS10221 Well Pump
Trimline (TM) Series pumps are 3-3/4" O.D. to fit in 4" or larger diameter well casings
FEATURES:
Ports:
Motor: 1 Horsepower, Single Phase, 2-wire
Specifications:
HORSEPOWER: 1 HP
PERFORMANCE SERIES: 7 GPM
NUMBER OF STAGES: 17
VOLTAGE: 230v AC, 1-phase
NUMBER OF WIRES: 2 wires plus ground
SHELL: Stainless Steel
DIAMETER: 3-3/4"
LENGTH: 33-3/4"
WEIGHT: 37 lbs
DISCHARGE: 1-1/4" NPT, Stainless steel
DISCHARGE BEARING: Nylatron (R)
IMPELLERS: Acetal
DIFFUSERS: Polycarbonate
SUCTION CAPS: Polycarbonate with stainless steel insert
THRUST PADS: Proprietary spec
SHAFT END COUPLING: Stainless steel
INTAKE: Stainless steel
INTAKE SCREEN: Stainless steel
CABLE GUARD: Stainless steel
CHECK VALVE: Acetal
AGENCY LISTINGS: CSA
