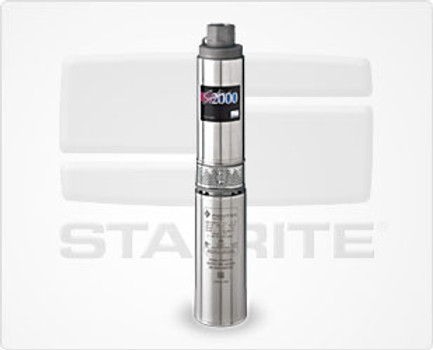

Sta-Rite S10P4HS10231plus Well Pump
Stainless Steel series pumps deliver efficient, dependable performance even in rough, aggressive water
Key Features:
- 10 GPM/3 WIre 11 Stages
- 1 Horsepower
- Single Phase
- Volt - 230
- Length Inches - 28
- Weight (lbs.) - 34
Specifications:
HORSEPOWER: 1 HP
PERFORMANCE SERIES: 10 GPM
NUMBER OF STAGES: 11
VOLTAGE: 230v AC, 60 Hz, 1-phase
NUMBER OF WIRES: 3-wires plus ground
SHELL: Stainless Steel
DIAMETER: 3-7/8"
LENGTH: 32-3/4"
WEIGHT: 41 lbs
DISCHARGE: 1-1/4" NPT
DISCHARGE BEARING: Nylatron (R)
IMPELLERS: Acetal
DIFFUSERS: Polycarbonate
SUCTION CAPS: Polycarbonate w/ Stainless Steel Insert
THRUST PADS: Proprietary spec.
SHAFT END COUPLING: Stainless Steel
INTAKE: Stainless Steel
INTAKE SCREEN: Polypropylene
CABLE GUARD: Stainless Steel
CHECK VALVE: Acetal
