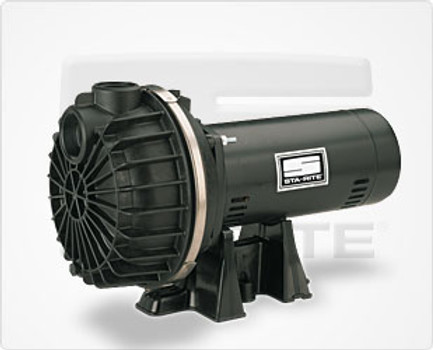

Sta-Rite PD2HF-l Centrifugal Pump
Quick-priming PD pumps feature lightweight construction in a self-priming design. The 1 and 1-1/2 HP models offer a new, stronger pump body with reinforcement ribs and also a new 2" suction.
Key Features:
- 1 1/2 Horsepower
- Suct. Pipe - 2"
- Disch. Pipe - 1 1/2"
- Voltage - 115/230
- Pounds - 41
Specifications:
BODY CONSTRUCTION: Thermoplastic
HORSEPOWER: Available in 1, 1.5, 2, and 2.5 HP
MAXIMUM CAPACITY: 90 GPM (model PDHHG)
FLOW at 10' LIFT and 30 PSI: 44 GPM (model PD2HF)
MAX LIFT: 25'
MAXIMUM OUTPUT PRESSURE: 60 PSI (model PDHHG)
MAXIMUM TOTAL PRESSURE (Inlet + Pump Pressure): PD2HE: 105 PSI / PD2HF: 115 PSI / PD2HG: 135 PSI / PD2HH: 140 PSI
SUCTION SIZE: 2" NPT
DISCHARGE SIZE: 1-1/2" NPT (2HP and 2-1/2HP models are 2" NPT)
AMP DRAW (full load):
VOLTAGE: 115v / 230v AC, 60 Hz, 1-phase. (2HP and 2-1/2HP models are 230v only)
MAXIMUM LIQUID TEMPERATURE: 140 F (60 C)
