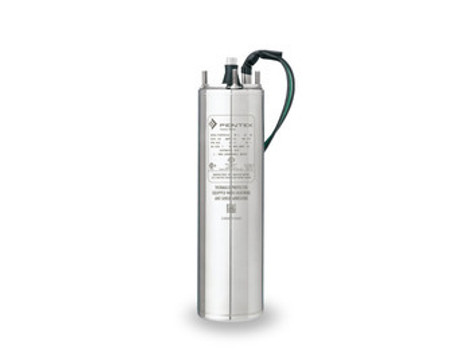

Sta-Rite P43B0020A8-c Pentek Submersible Motor
PENTEK® XE Series submersible 4" high-thrust motors are built with the latest design, manufacturing and testing technology. They feature laser-welded 304L Stainless Steel construction, higher thrust capacities, and higher efficiencies. These motors incorporate "encapsulated, epoxy stator design," and professional grade Class F insulation provides longer life in harsh environments. Each motor is 100% factory pressure and run tested to support our quality standards.
Key Features:
- Large high-performance 700# Kingsbury thrust bearing design allow higher thrust loads
- Designed to provide many years of service under severe-duty opration
- Permanent Split Capacitor (PSC) insures quiet operation and improved operating efficiency
- All stainless-steel exterior
- Professional-grade Class F compliant motor insulation allows for longer service life
- Equipped with Surge Arrestor
- Automatic Thermal Protection
Specifications:
- 3 (Requires a starter control box)NUMBER OF WIRES:
- HORSEPOWER: 2
- VOLTAGE: 200 Volt
- PHASE: 3
- FREQUENCY (Hz): 60
- AMP DRAW and SERVICE FACTOR: (model dependent) See Spec Sheet in Resources for details
- END BELL: 304 Stainless Steel
- SHELL: 304 Stainless Steel
- MOTOR SHAFT: 17-4 Precipitation Hardened Stainless Steel
- INSULATION: Class E, 311 degrees F (155 degrees C)
- MAX. WATER TEMP.: 86 degrees F (30 degrees C)
- FASTENERS: 304 Stainless Steel
- SAND BOOT: Nitrile
- CABLE: 48", Field-Serviceable, Controlled Compression Design, UL and CSA Approved
- DIAPHRAGM: EPDM
- THRUST BEARINGS: Kingbury-type, Pivot Shoe, Carbon Graphite Mating Ring
- THRUST LOAD CAPACITY: 700 lbs
