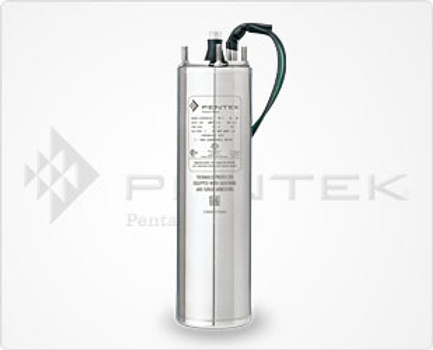

Sta-Rite P43B0020A3-c Pentek Submersible Motor
Key Features:
- 3 Wire 5 Stages
- 2 Horsepower
- 3 Phase
- Volt - 460
- Length Inches - 24 1/16
Specifications:
NUMBER OF WIRES: 3 plus ground
HORSEPOWER: 2
VOLTAGE: 230v AC
PHASE: 3
FREQUENCY (Hz): 60
LOCKED ROTOR AMPS: 44.0
SERVICE FACTOR AMP RATING: 7.6
FULL LOAD AMP RATING: 6.5
END BELL: 304 Stainless Steel
SHELL: 304 Stainless Steel
MOTOR SHAFT: 17-4 Precipitation Hardened Stainless Steel
INSULATION: Class E, 311 degrees F (155 degrees C)
MAX. WATER TEMP.: 86 degrees F (30 degrees C)
FASTENERS: 304 Stainless Steel
SAND BOOT: Nitrile
CABLE: 48", Field-Serviceable, Controlled Compression Design, UL and CSA approved
DIAPHRAGM: EPDM
THRUST BEARINGS: Kingsbury-type, Pivot Shoe, Carbon Graphite Wear rings
THRUST LOAD CAPACITY: 700 lbs
