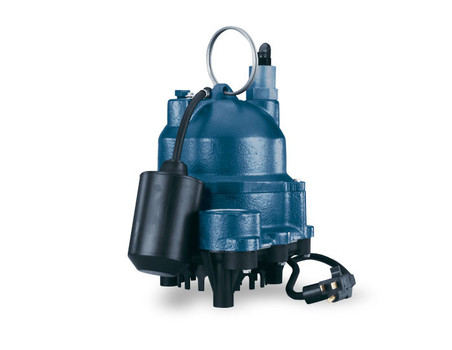

Sta Rite - DC233120V
1/3HP, 115 Volt, Vertical Float Switch, 20" Cord
The Sta-Rite DC Series of cast iron sump pumps feature a vortex impeller to provide solids-handling capability up to 1/2"
Specifications:
- BODY CONSTRUCTION: Rugged cast iron pump body and motor cover
- HORSEPOWER: Available in 1/3 or 1/2 HP
- MAXIMUM HEAD: Up to 24'
- FLOW AT 10' LIFT: 1/3 HP: 39 GPM, 1/2 HP: 63 GPM
- SWITCH TYPE: Vertical
- SWITCH 'ON' LEVEL: Teathered: 13", Vertical: 7"
- SWITCH 'OFF' LEVEL: Teathered: 4", Vertical: 2"
- MOTOR: 1/3 HP, 1550 RPM, Shaded pole with thermal overload protection
- MINIMUM SUMP DIAMETER: 14"
- IMPELLER: Thermoplastic, vortex type
- DISCHARGE SIZE: 1-1/2" FNPT
- MAXIMUM SOLIDS HANDLING SIZE: 1/2"
- AMP DRAW: 9.8 full load amps
- POWER CORD: 20'
- VOLTAGE: 115 VOLT, 1PH, 60 Hz
- MAXIMUM LIQUID TEMPERATURE: 130 degrees F (55 degrees C)
