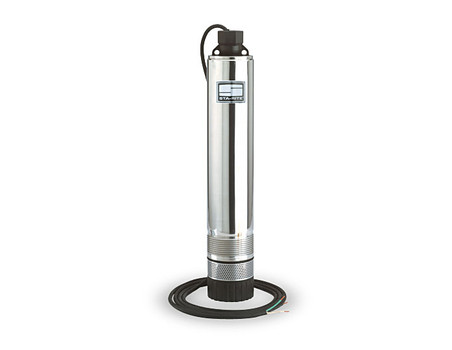

Sta-Rite 30DOM05121 Well Pump
The STEP Plus™ D-Series 4" submersible pump series in 10, 20 and 30 GPM models dominates with superior "DRAW-DOWN" capability. Sold & proven in aerobic & filtered effluent service applications. This pump is also great for reservoir water pumping applications.
Key Features:
- HP - 1/2
- Amps. - 9.5
- Volts - 115
- Cycles - 1/60
- Cord Length - 10
- Pallet Quantity - 80
- Weight - 16
Specifications:
APPLICATIONS: Filtered effluent, low "DRAW-DOWN", reservoir pumping
BODY CONSTRUCTION: Stainless steel (300 grade)
MOTOR: 1/2 HP, 115 or 230 volt, single phase
PUMPING DRAW-DOWN: 4-1/2"
SWITCH TYPE: Float switch not included with STEP models
BEARINGS: Exclusive self lubricating Nylatron® bearing resists wear surface from sand and abrasives
IMPELLER: Precision molded Acetal for perfect balance... ultra smooth for the highest performance and efficency. Allows for .080" solids
DISCHARGE SIZE: 1-1/4" FNPT Fiberglass reinforced thermoplastic
MAXIMUM SOLIDS HANDLING SIZE: .080"
POWER CORD: 10'
